M.S Dental surgicals

Professional Design

LED Display, Easy operation, Stainless Steel Water lank, high density, bacteria filter.

Leading Technology

Automatic Sterilization, automatic drying, keep – temperature function, adjustable sterilization time, accurate temperature control, safely protection design, monitoring system.

Program	121° C Solid	121° C Universal	134° C Solid	134° C Universal	Cotton	BD/Helix Test	Vacuum Test
Vaccum Times	1	3	1	3	3	3	3
Temperature (c)	121	121	134	134	134	134	/
Pressure (KPA)	110	110	210	210	210	210	-80
Time (Min)	20	20	4	4	4	3.5	15

Class – D

GX – 22L

Capacity 22L
Chamber Size   Ø25*45cm
Display   LED
Lock Electrical / Mechanical
Product Size    70*44.5*39cm
G.W.N.W   58/50 KGS
Power 220V/50HZ 1.7 KW
Output   RS232
Primler   thermal/stylus

Professional Design

LCD Display, More & quicker programs, Multi – Languages available, user – defined programs, 5L large stainless steel water tanks, easy operation, high density bacteria filter, user password, pre-heating before first use, USB+Printer real time output.

Leading Technology

Dual core control system, first – class safely system, electrical look with patents, adjustable sterilization parameters, powerful steam generator and Vaccum pump, accurate temperature control fault-self-checking function, spate setup menu, separate service menu.

Program	121° C Solid	121° C Hollow	121° C Porous	134° C Solid	134° C Hollow	134° C Porous	Cotton	Prion	User defined	BD/Helix Test	Vacuum Test	Clean
Vaccum Times	1	3	3	1	3	3	3	3	User defined	3	1	3
Temperature (c)	121	121	121	134	134	134	134	134	User defined	134	/	105
Pressure (KPA)	110	110	110	210	210	210	210	210	User defined	210	-80	20
Time (Min)	20	20	20	4	4	4	4	19	User defined	3.5	15	5

Class – B

GX – 22L-E

Capacity 22L
Chamber Size   Ø25*45cm
Display   LED
Lock Electrical / Mechanical
Product Size    78*50*43cm
G.W.N.W   70/59 KGS
Power 220V/50HZ 2.4 KW
Output   USB+RS232
Primler   thermal/stylus

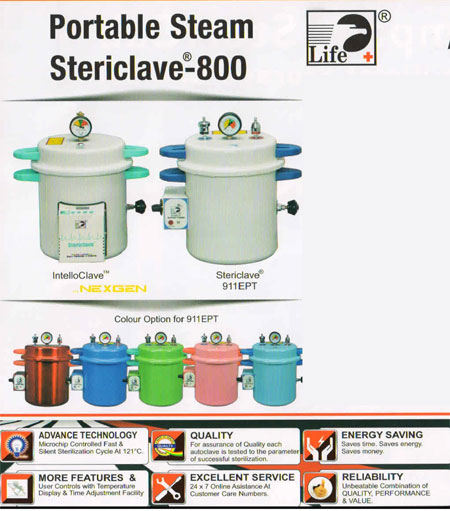

Stericlave-800

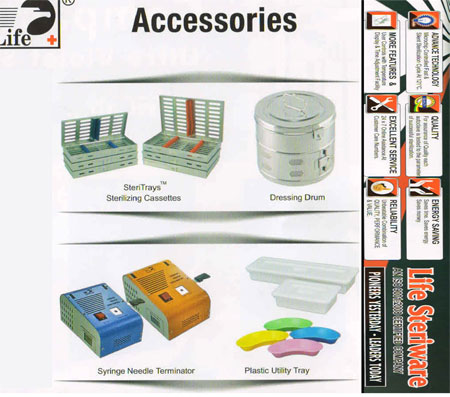

Accessories
