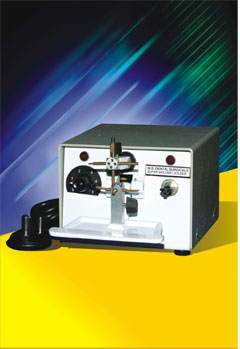

Ortho Spot Welder

Portable table top, light weight spot welder

• Feather type finger witch,automatically activates the solid state circuit, releaing the welding energy.
• Rotary type switch with progressive heat station for welding and auxiliary functions.
• Turret with one soldering and 4 welding electrode combination.
• Rocker switch for easy transformation from welding to soldering and vise versa.
• The carbon electrode specially designed only for soldering.

Functions

• Welding with four welding stations, sharp electrodes both sides for optimum welding.
• Soldering carbon with flat copper tip. All tips are made of special grade Copper Alloy high density.

Technical Features

• Over load protection fuse 2 amps.
• Works on 220V AC Current.
• Output 2.5V AC Current very safe.
• Insulated AC Power transformer for various

Optional

• Flexible soldering cable
• Annealing jack
• Foot switch welding and soldering
